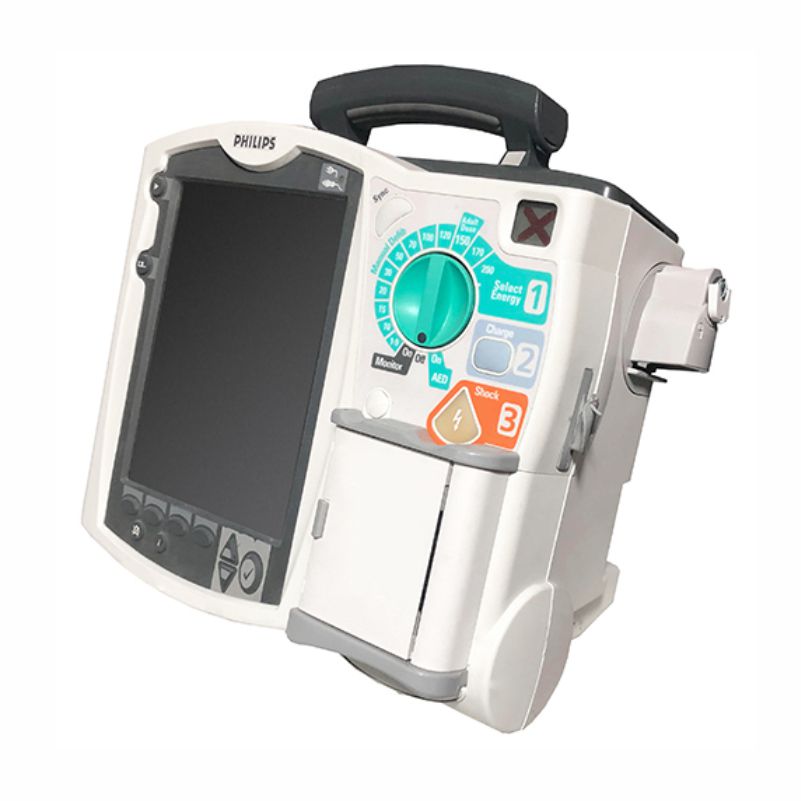

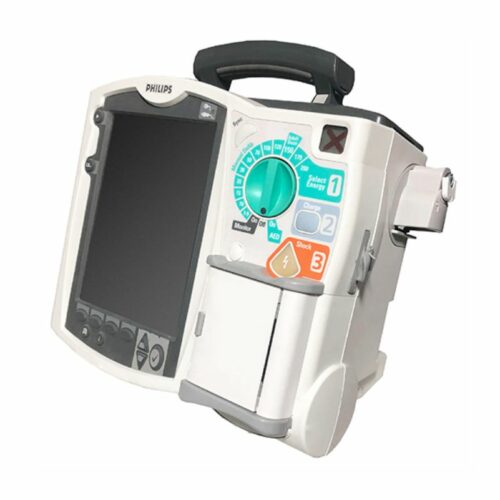

Philips HeartStart MRx Defibrillator AED Specifications
- Waveform: Truncated Exponential Biphasic. Waveform parameters adjusted as a function of patient impedance
Output Energy
Manual: 1-10, 15, 20, 30, 50, 70, 100, 120, 150, 170, 200 Joules max
Internal Defibrillation: limited to 50 Joules
AED Mode (single energy output): 150 Joules @ 50 Ohm load
Charge Time: Less than 5 seconds to 200 Joules with a new, fully charged lithium ion battery at 77 ?F
Shock Delivery: Via multifunction electrode pads or paddles
Quick Shock: Less than 10 seconds from cessation of CPR to shock delivery
Patient Impedance Range Minimum: 15 Ohm (internal); 25 Ohm (external) Maximum: 180 Ohm - AED Mode
Shock advisory sensitivity and specificity meet AAM - IDF-39 guidelines
Dimensions: 12 1/2? W x 8 1/3? D x 11 2/3? H
Weight: 13.2 lbs - Temperature
Operating: 32 ?F ? 113 ?F
Storage: -4 ?F ? 158 ?F
